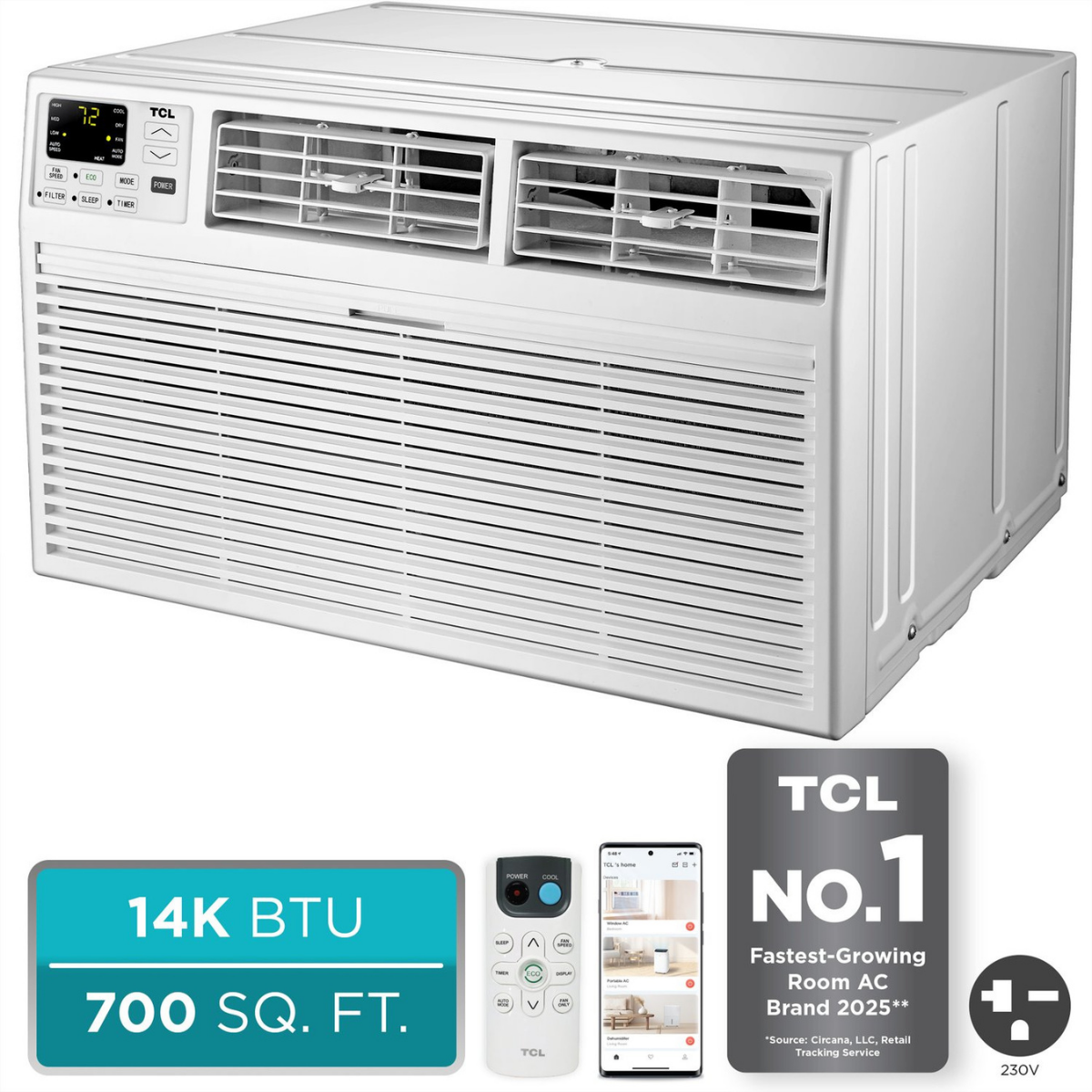

TCL 14,000 BTU Through-the-Wall Air Conditioner
TCL 14,000 BTU Through-the-Wall Air Conditioner - Cool/Heat is backordered and will ship as soon as it is back in stock.
Tackle demanding cooling jobs in one step with the TCL 14,000 BTU Through-the-Wall Air Conditioner. Designed for permanent wall installation, this 230-volt solution delivers reliable climate control for large rooms and open-plan spaces in homes, offices, and light commercial settings.
Each model is engineered around a high-output compressor, intuitive digital controls, and smart connectivity, giving you straightforward performance season after season.
Key Features and Benefits of the TCL 14,000 BTU Through-the-Wall Air Conditioner
- High Capacity: A 14,000 BTU cooling capacity covers up to 700 square feet, ideal for bedrooms, offices, and apartments.
- Optional Heater Model: The optional Cool/Heat model (H14T9XH) adds 13,600 BTUs of heating power, giving you a handy backup on cool mornings to supplement central heating.
- Smart Controls: Connect the AC to Wi-Fi for remote adjustments via Amazon Alexa or Google Assistant, or fine-tune settings from your phone when you are off-site.
- Multiple Speeds and Modes: Match airflow to your daily routine with multiple fan speeds, dedicated eco mode, and sleep mode for quiet nighttime operation.
- Built-In Dry Mode: The dehumidification setting pulls excess moisture from humid rooms, helping protect furnishings and improve comfort.
- Energy-Saving Modes: An Eco Mode that turns the unit off once a setpoint is reached, and a 24-hour timer function that lets you schedule automatic start or stop times helps you avoid unnecessary run time and trim operating costs. It has an estimated yearly energy cost of $143.
- Auto Restart: The memory function restores previous settings once power returns, minimizing downtime in managed properties.
- Washable Air Filter: The reusable filter slides out for quick cleaning, maintaining airflow and cutting replacement costs.
- Eco-Friendly Refrigerant: Uses the modern R-32 refrigerant with a lower global warming potential than many legacy options, supporting sustainability goals.
Note: A 26 x 15.75 x 20-inch wall sleeve (sold separately) is required for installation.
Install with Confidence
A through-the-wall design frees up window space, prevents drafts around the frame, and offers tighter weather sealing than a window AC. The 24.21 x 20.28 x 14.53-inch chassis slides directly into a standard 26 x 20 x 15.75-inch sleeve (Required but not included), which keeps structural modifications minimal for retrofits. At 74.5 pounds, the cabinet is manageable with two people, and front-access service panels keep routine filter cleaning simple.
Sylvane’s Expert Take
This TCL 14,000 BTU Through-the-Wall Air Conditioner delivers the balanced performance that residential and commercial customers expect. Flexible fan speeds, Dry Mode, and precise louver control let you tailor comfort to diverse room layouts, while a sleeve-ready chassis simplifies installation. If you need a dependable 230-volt, through-the-wall cooling solution for large spaces, this model is sure to perform.
-
ASHRAE Cooling Power (BTUs)14000
-
Number of Speeds4
-
Chassis TypeSlide-Out
-
Circuit Breaker Rating230V-20A
-
ColorWhite
-
Compatible Wireless DevicesAlexa, Google Home, App
-
Estimated Yearly Operating Cost143.0
-
Heat ModeYesNo
-
Heating BTUs (BTUs)13600
-
Recommended Coverage Area (sq. ft.)700
-
Refrigerant TypeR-32
-
California Residents⚠ WARNING: This product can expose you to chemicals including carbon black, which is known to the State of California to cause cancer, and Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
-
Maximum Cooling Amperage (Amps)8.5
-
Maximum Cooling Wattage (W)1780
-
Plug Face Type6-20P
-
Voltage (V)208-230
-
Depth (in.)20.28
-
Height (in.)14.53
-
Through-Wall Finished Depth (in)20.0
-
Through-Wall Finished Height (in)15.75
-
Through-Wall Finished Width (in)26.0
-
Weight (lbs.)74.572.8
-
Width (in.)24.21
-
Additional FeaturesDehumidifier Mode, Fan-Only Mode, Programmable Timer, Remote Control, Sleep Mode, Wi-Fi Capable
-
Manufacturer's Warranty1-Year Parts and Labor Limited Warranty
Key Specifications
General
Power
Dimensions
Additional Features
Warranty
