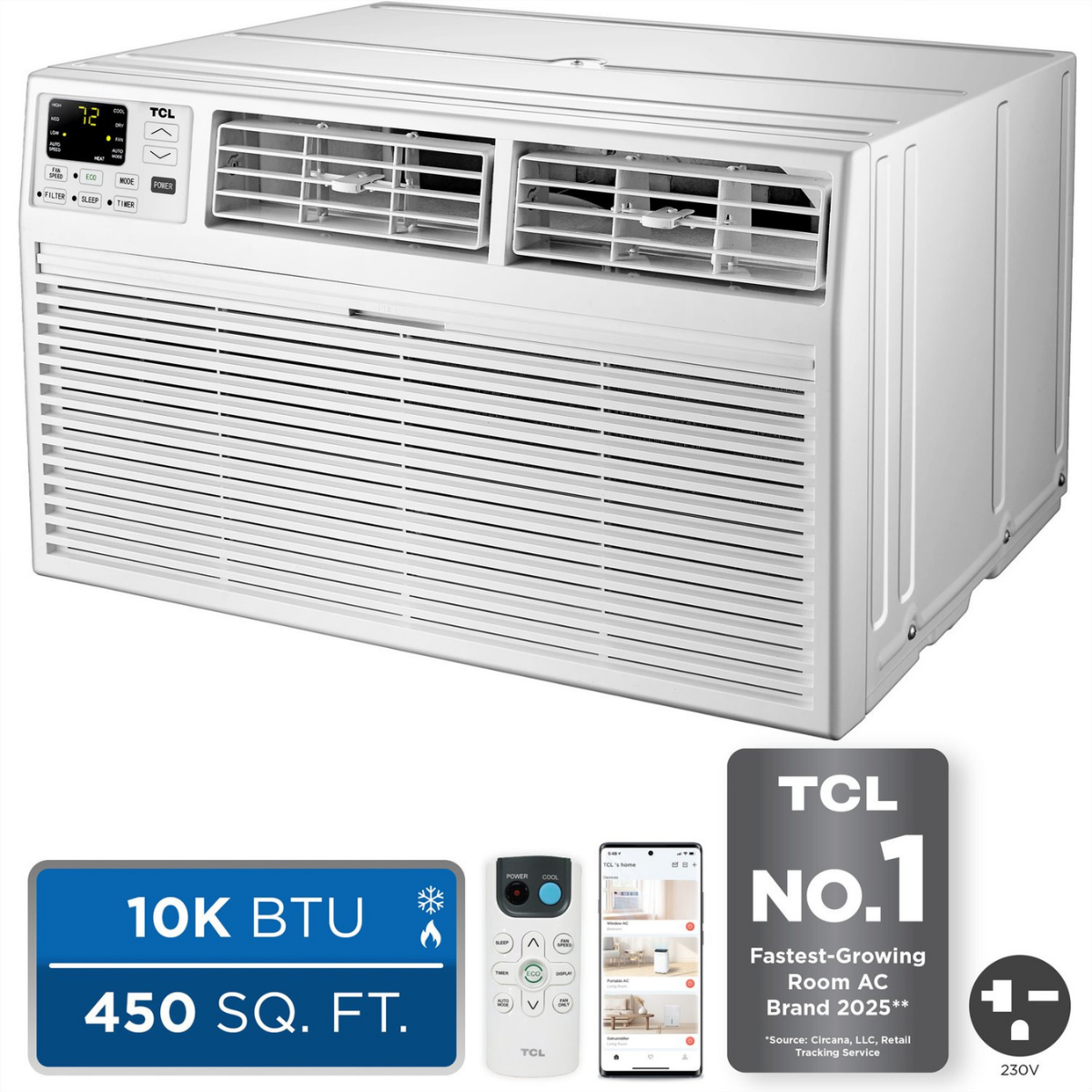

TCL 10,000 BTU Through-the-Wall Air Conditioner
TCL 10,000 BTU Through-the-Wall Air Conditioner - Cool/Heat 230V is backordered and will ship as soon as it is back in stock.
With the TCL 10,000 BTU Through-the-Wall Air Conditioner, you can quickly output consistent cooling in medium-sized spaces. Made for through-the-wall installation, it delivers reliable temperature control while keeping valuable window and floor space clear.
This model pairs proven cooling technology with an in-wall design that supports high operating efficiency and straightforward maintenance for year-round comfort.
Key Features and Benefits of the TCL 10,000 BTU Through-the-Wall Air Conditioner
- High Capacity: The cooling capacity of 10,000 BTUs is good for spaces as large as 450 square feet, like bedrooms, offices, and studio apartments.
- Optional Heater Model: An optional Cool/Heat model (H10T9XH) gives you 9,800 BTU of heating power as a backup supplemental heating source when temperatures drop.
- Smart Controls: Connect to Wi-Fi for hands-free adjustments through Amazon Alexa or Google Assistant, or fine-tune settings from your phone when you are off-site.
- Multi-Function Operation: Match airflow to your daily routine with multiple fan speeds, dedicated eco mode, and sleep mode for quiet nighttime operation.
- Functional Dry Mode: A mode that prioritizes air dehumidification pulls excess moisture from humid rooms, helping protect furnishings and improve comfort.
- Energy-Saving Modes: Has an Eco Mode that turns the unit off once a setpoint is reached, and a 24-hour timer function that lets you schedule automatic start or stop times, helping you avoid unnecessary run time and trim operating costs. It has an estimated yearly energy cost of $96.
- Auto Restart: A memory function restores previous settings once power returns, minimizing downtime in managed properties.
- Washable Air Filter: The reusable filter slides out for quick cleaning, maintaining airflow and cutting replacement costs.
- Eco-Friendly Refrigerant: Uses the modern R-32 refrigerant with a lower global warming potential than many legacy options, supporting sustainability goals.
Note: A 26 x 15.75 x 20-inch wall sleeve (sold separately) is required for installation.
Wall-Ready Fit
Through-the-wall projects often hinge on sleeve compatibility and clearances. This TCL model is sized for 26 x 20 x 15.75-inch wall sleeves, simplifying retrofit projects where an older AC is being replaced. The 65-pound chassis slides in smoothly, and the installation kit, weather sealing, and mounting hardware are included. It connects to a 115-volt power supply (cooling-only model H10T9E1-A) or 230-volt power (cooling/heat model H10T9XH), making it suitable for most commercial and multifamily electrical settings.
Sylvane’s Expert Take
This TCL 10,000 BTU Through-the-Wall Air Conditioner stands out by combining powerful airflows, smart connectivity, energy efficiency, and an installer-friendly chassis. This TTW AC offers precise control from anywhere, along with multiple operating modes and settings that meet the needs of different spaces. For property managers and homeowners seeking a dependable wall AC that is simple to specify and install, this model checks the essential boxes.
-
ASHRAE Cooling Power (BTUs)10000
-
Number of Speeds4
-
Chassis TypeSlide-Out
-
Circuit Breaker Rating230V-20A115V-15A
-
ColorWhite
-
Compatible Wireless DevicesAlexa, Google Home, App
-
Estimated Yearly Operating Cost96.0
-
Heat ModeYesNo
-
Heating BTUs (BTUs)9800
-
Recommended Coverage Area (sq. ft.)450
-
Refrigerant TypeR-32
-
California Residents⚠ WARNING: This product can expose you to chemicals including carbon black, which is known to the State of California to cause cancer, and Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
-
Maximum Cooling Amperage (Amps)6.011.0
-
Maximum Cooling Wattage (W)13401200
-
Plug Face Type6-20P5-15P
-
Voltage (V)208-230110-120
-
Depth (in.)20.28
-
Height (in.)14.53
-
Through-Wall Finished Depth (in)20.0
-
Through-Wall Finished Height (in)15.75
-
Through-Wall Finished Width (in)26.0
-
Weight (lbs.)65.965
-
Width (in.)24.21
-
Additional FeaturesDehumidifier Mode, Fan-Only Mode, Programmable Timer, Remote Control, Sleep Mode, Wi-Fi Capable
-
Manufacturer's Warranty1-Year Parts and Labor Limited Warranty
