S&P TRCeN1600H 2200 CFM Commercial Energy Recovery Ventilator

SKU: sp15655  |  Model: TRCeN1600H-230
$16,96700
Voltage

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

10-Year Core Warranty, 2-Year Unit Warranty

What's In The Box?
  • S&P TRCeN1600H 2200 CFM Commercial Energy Recovery Ventilator
  • MERV 8 - 20 x 20 x 2 (4)
  • Installation and Operating Manual

Info & Guides

Description

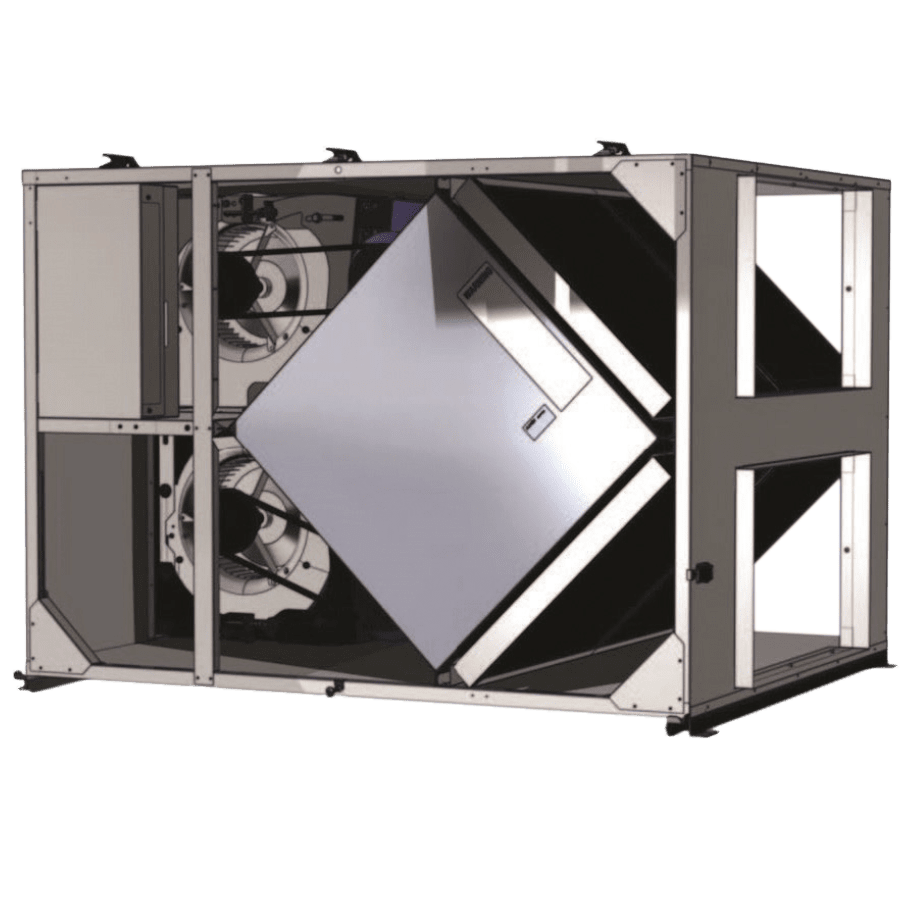

Bringing outdoor air into a commercial building usually means paying to heat or cool it. The S&P TRCeN1600H cuts that cost with 2 side-by-side L125-G5 crossflow cores. They use S&P's air-to-air technology to pass energy between the incoming and outgoing airstreams while keeping the 2 streams separate, so you can meet modern ventilation code requirements with less load on your HVAC equipment.

Plan your installation around vibration control. S&P recommends setting this ventilator on a concrete floor with the included leveling legs and feet, or attaching it to a concrete wall so blower vibration stays out of the building structure. Side-mounted duct ports and hardwired power complete the setup.

Key Features and Benefits of the S&P TRCeN1600H 2200 CFM Commercial Energy Recovery Ventilator

  • Wide Airflow Range: Delivers 500 to 2,200 CFM of fresh air exchange, so you can match ventilation to occupancy in large commercial spaces.
  • Twin EC Motors: Uses 2 direct-drive EC motorized impeller packages for high fan efficacy, with electronic controls and an on-board potentiometer for easy speed adjustment.
  • AHRI 1060 Cores: Both full-size L125-G5 resin cores are AHRI 1060 certified, giving you third-party-verified energy recovery performance.
  • No Defrost Needed: The resin cores transfer moisture and prevent frost build-up in most applications, so you avoid defrost cycles and keep heat recovery efficiency high.
  • MERV 8 Filtration: Uses 4 MERV 8 filters measuring 20 x 20 x 2-Inches (L x W x H) to remove impurities from both outdoor and room air.
  • Service Access Doors: The fully insulated case opens to both blowers and the 2 cores as well as all 4 filters, so routine maintenance stays quick.

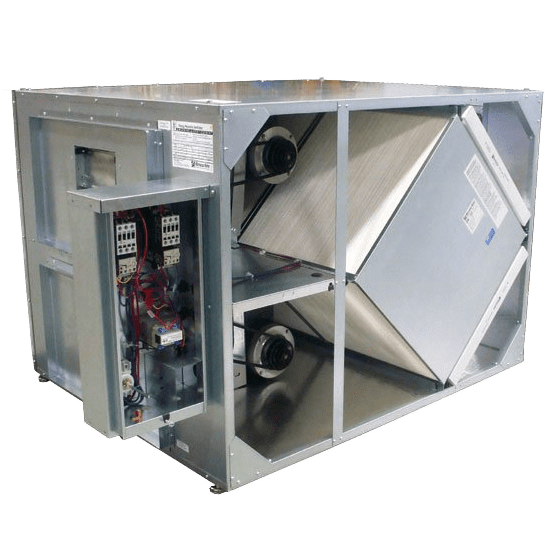

  • Built-In Electrical: A non-fused disconnect and a 24 VAC transformer/relay package are built in, which simplifies hardwired power and low-voltage control wiring on site.
  • Circuit Protection: These models run on 60 Hz power with 15-amp maximum overcurrent protection, so a breaker of that rating or lower protects the circuit (208-230V and 460V models only).
  • Certified Construction: The series carries AHRI and Ecowatt certification and cULus listing, and meets IIJA (2022) domestic-content requirements for federally funded projects.
  • Size and Weight: Measures 60.5 x 35.5 x 42.88-Inches (L x W x H) and weighs 406 pounds, so plan floor space and rigging before delivery.

Choose Your Voltage and Phase

Pick from 4 voltage configurations to match your building's electrical service: 120V 1Ph, 208-230V 1Ph, 208-230V 3Ph, or 460V 3Ph.

  • 208-230V 1Ph: This 1-phase model draws 770 watts per motor at 3.4 FLA per motor and needs a 7.7 minimum circuit ampacity, which suits buildings without 3-phase service.
  • 208-230V 3Ph: This 3-phase model is rated at 2,150 watts with 5.7 FLA per motor and a 12.8 minimum circuit ampacity, so it fits buildings that already have 208-volt or 230-volt 3-phase power.
  • 460V 3Ph: This high-voltage 3-phase model is rated at 2,100 watts with just 2.9 FLA per motor and a 6.5 minimum circuit ampacity, so you can use lighter wiring on 460-volt service.
  • 120V 1Ph: This 1-phase model runs on a 110-120 volt supply, so you can connect it where only standard service is in place.

Sylvane's Expert Take

If you're an HVAC contractor or engineer ventilating a commercial building in a cold or humid climate, the resin cores manage frost in most applications, so you won't need to commission defrost controls. Match the voltage to your existing service first, then consider the 460V model, which draws the least current per motor. For projects that need code-level fresh air without adding HVAC load, the TRCeN1600H is an easy spec.

Specifications

    Key Specifications

    • Minimum Cubic Feet per Minute (CFM) (CFM)
      500.0
    • Mounting Type
      Floor, Wall
    • Port Location
      Side
    • Type
      ERV-Air Supply Fan

    General

    • Application
      Commercial/Industrial
    • Certifications
      AHRI, cULus
    • Color
      Gray
    • Controls
      Electronic
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      2000.0
    • California Residents
      ⚠ WARNING: This product can expose you to chemicals including formaldehyde, which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov.

    Power

    • Maximum Amperage (Amps)
      208-230V 1Ph: 8.2
      208-230V 3Ph: 4.8
      460V 3Ph: 2.4
      120V 1Ph: 15.2
    • Power Supply
      Hardwired
    • Voltage (V)
      208-230V 1Ph: 208-240
      208-230V 3Ph: 208-240
      460V 3Ph: 440-480
      120V 1Ph: 110-120

    Dimensions

    • Depth (in.)
      35.5
    • Duct Diameter (in.)
      6.0
    • Height (in.)
      42.88
    • Weight (lbs.)
      406
    • Width (in.)
      60.5

    Warranty

    • Manufacturer's Warranty
      10-Year Core Warranty, 2-Year Unit Warranty
