Description

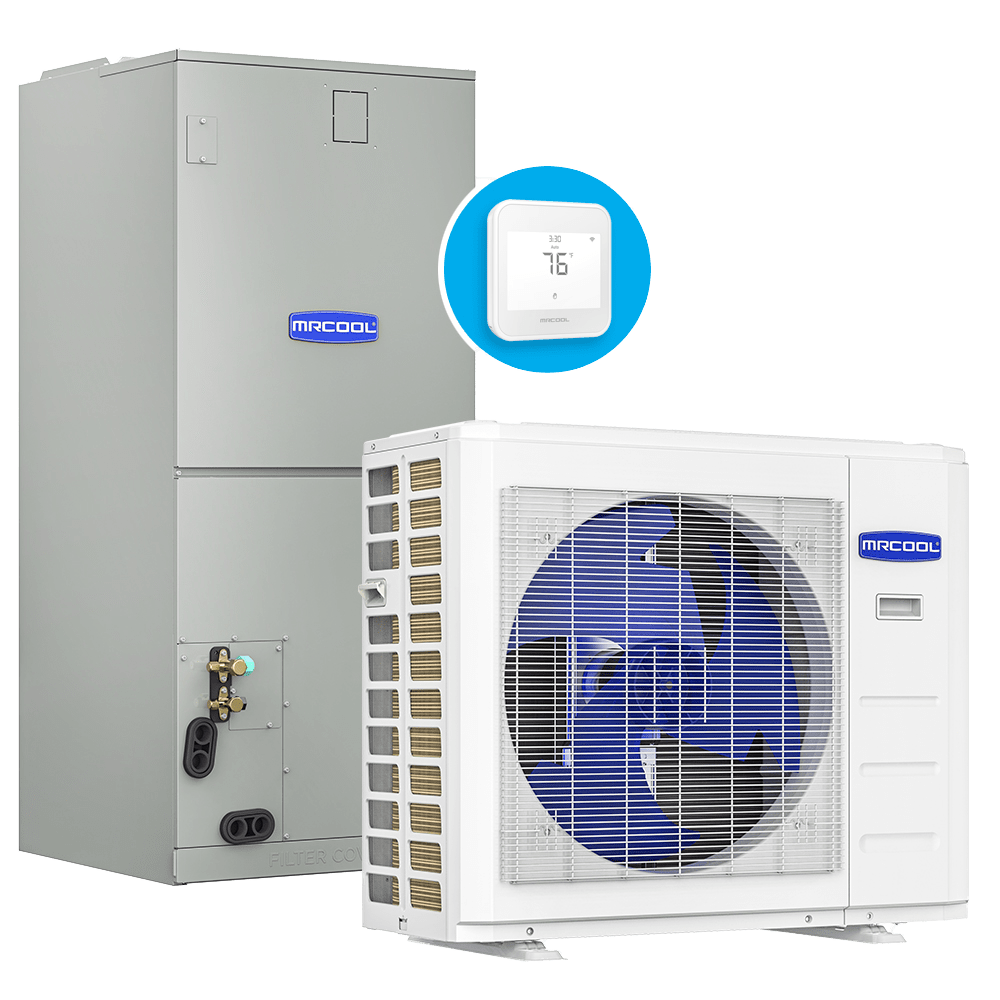

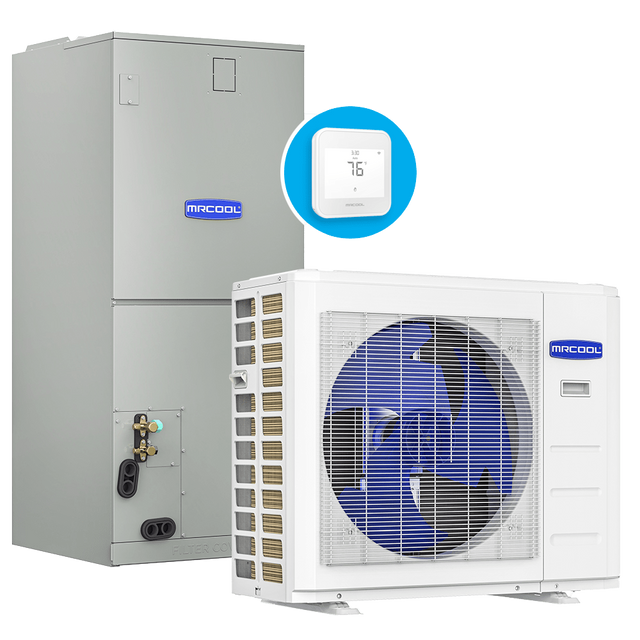

If you're replacing a furnace and a central air conditioner, you can start with the ductwork you already have. The MRCOOL VersaPro Central Ducted Heat Pump Split System connects a floor-mounted outdoor condenser to a multi-position air handler, so 1 heat pump does the work of 2 separate systems. It is designed for professional installation and runs on a 208-230-volt circuit, which your installer should confirm at your electrical panel.

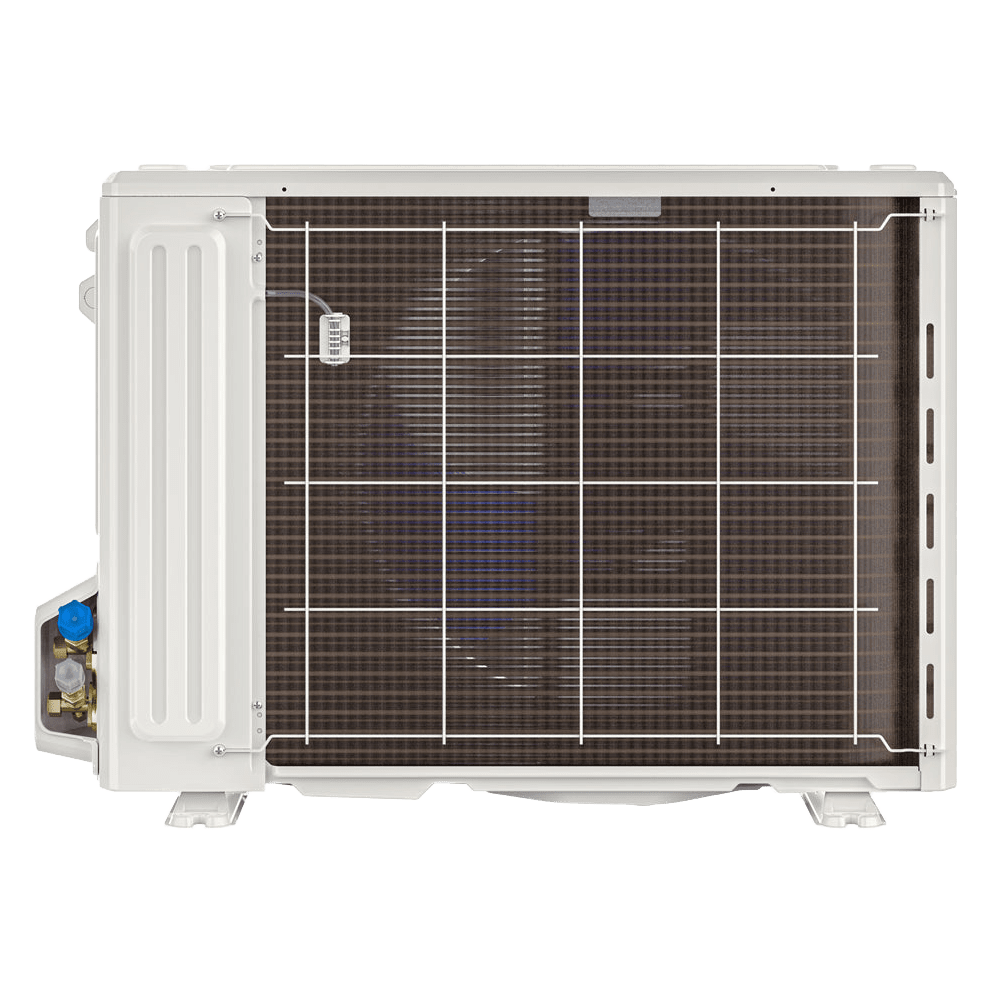

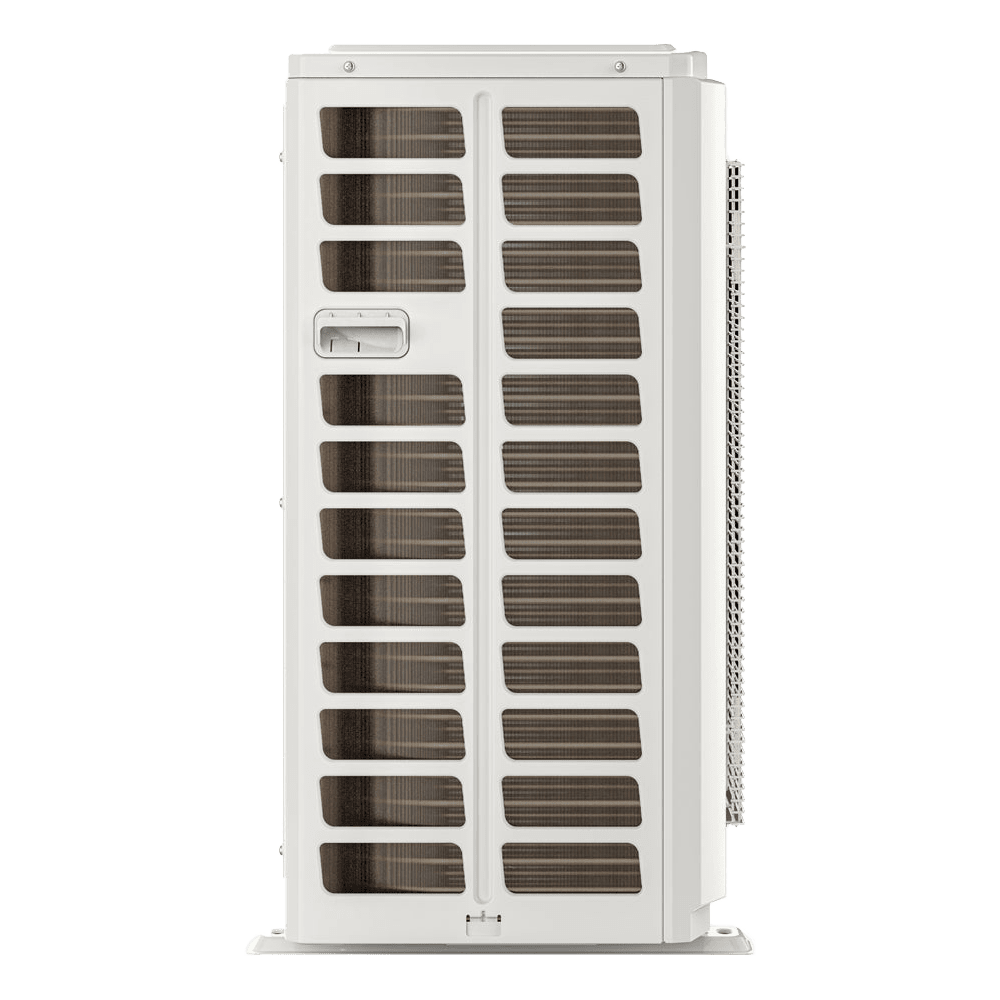

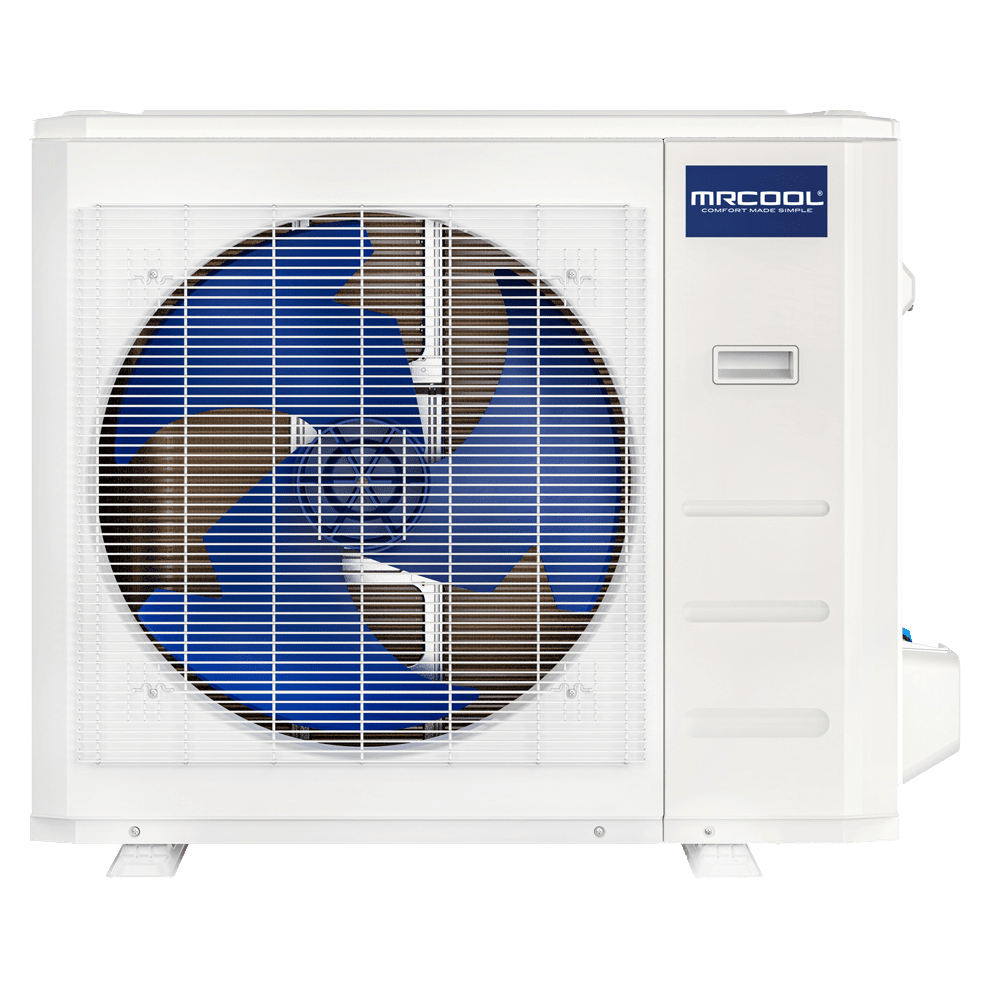

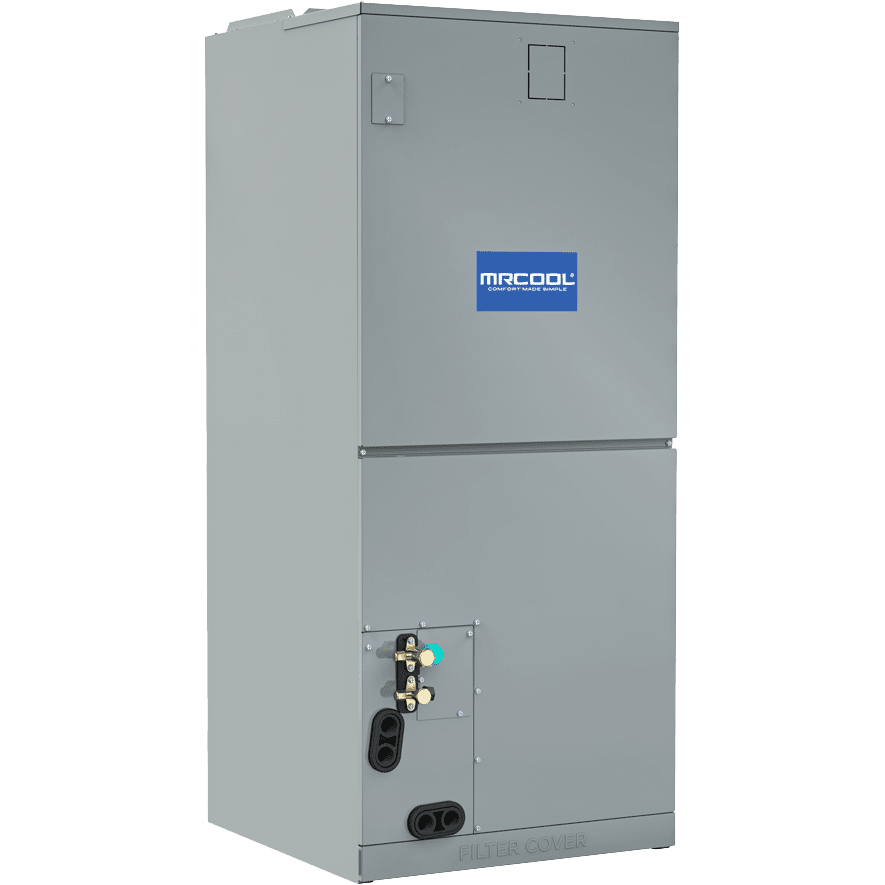

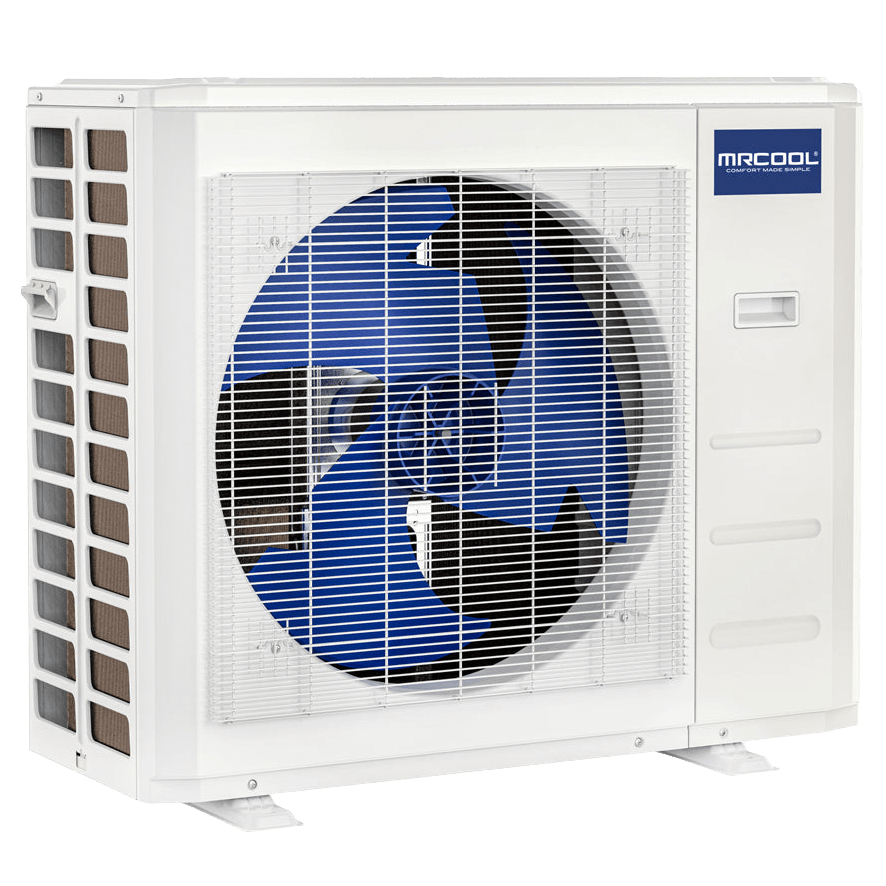

Plan the space before installation day. The air handler measures 21.02 x 21.02 x 49.02-Inches (L x W x H) and weighs 128.97 pounds, so measure your intended closet or basement location against that footprint. The outdoor condenser measures 37.24 x 16.14 x 31.89-Inches (L x W x H) and weighs 141.76 pounds, which helps you pick a ground-level spot with clearance around it.

Key Features and Benefits of the MRCOOL 30,000 BTU 2.5 Ton VersaPro Central Ducted Heat Pump Split System

Heating and Cooling: Puts out 30,000 BTU of cooling and up to 31,000 BTU of heating, so a single 2.5-ton system handles homes up to 1,400 square feet.
Wide Operating Range: Heats at outdoor temperatures between -22 and 75 degrees F, and cools between -22 and 122 degrees F, covering both harsh winters and summer heat waves.
Efficiency Ratings: Rated 18.6 SEER2 and 10.7 EER2 for cooling, plus an 8.7 HSPF2 heating rating and Energy Star certification, to help lower seasonal energy bills.
Inverter Compressor: The variable-speed inverter compressor adjusts its output to match demand, which cuts the wasteful on-off cycling that causes temperature swings.
Low Noise Levels: The air handler runs as quietly as 29 dB at its lowest setting and tops out at 46 dB, so it stays in the background of daily life.
R-454B Refrigerant: This refrigerant has a much lower global warming potential than older formulas.

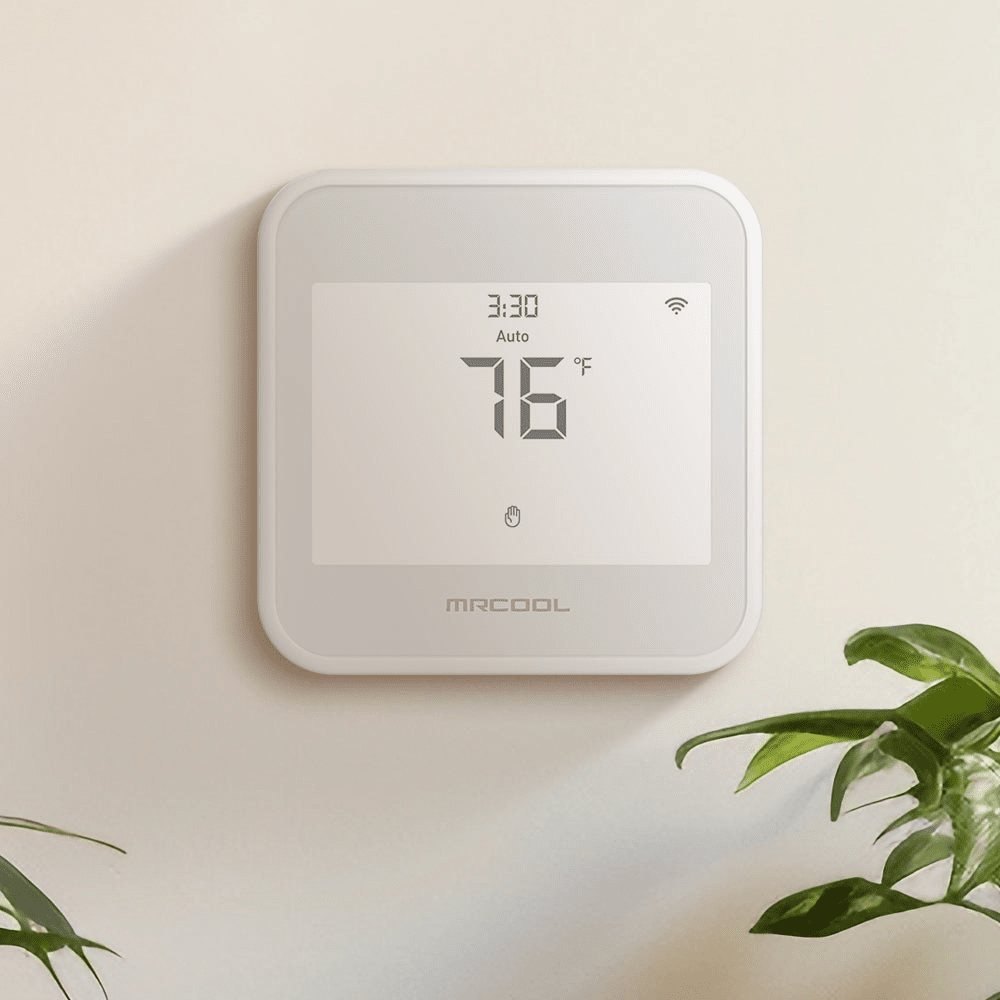

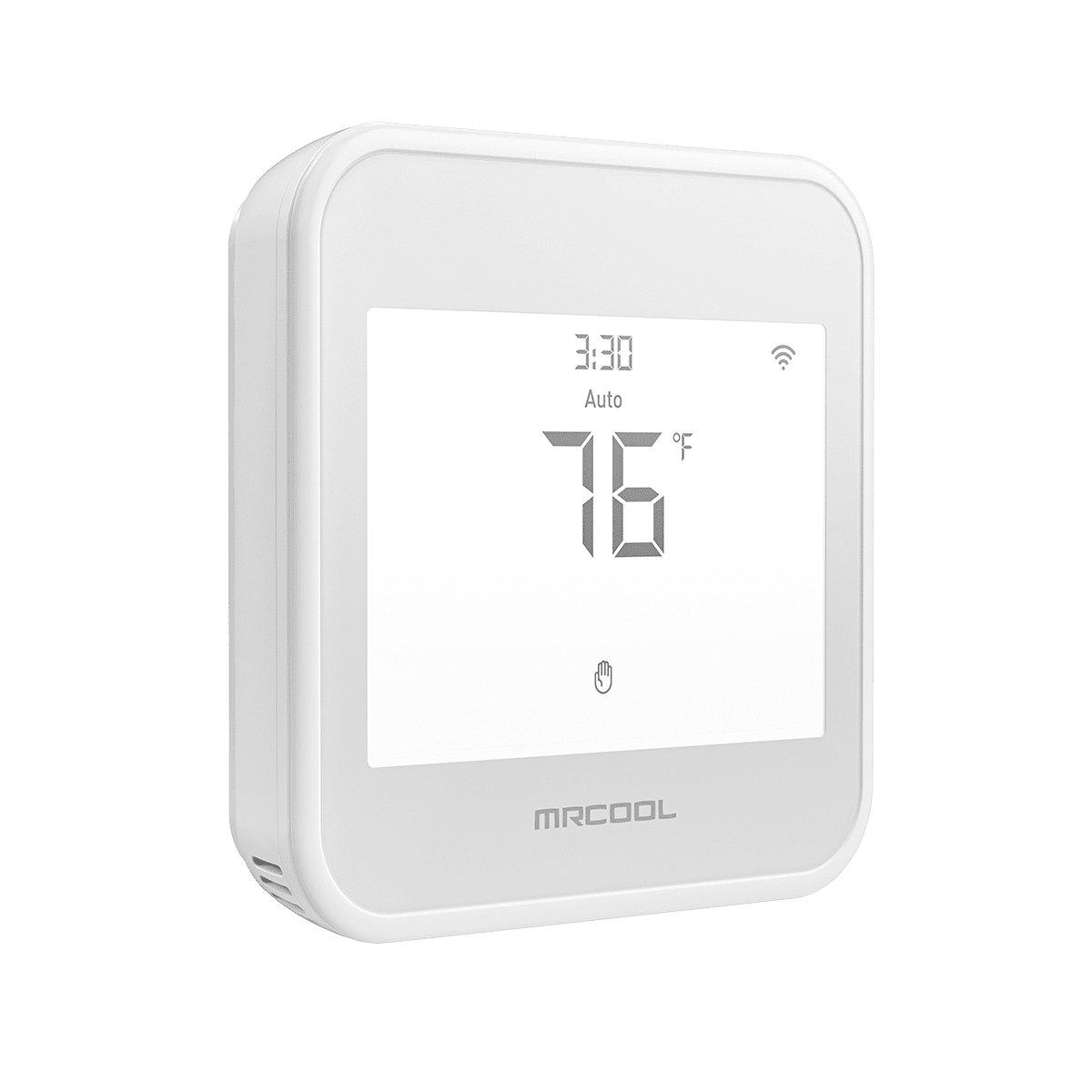

Control Options: Adjust comfort with the included Follow Me remote or wired MRCOOL Smart Thermostat, or pair a compatible third-party 24V thermostat.

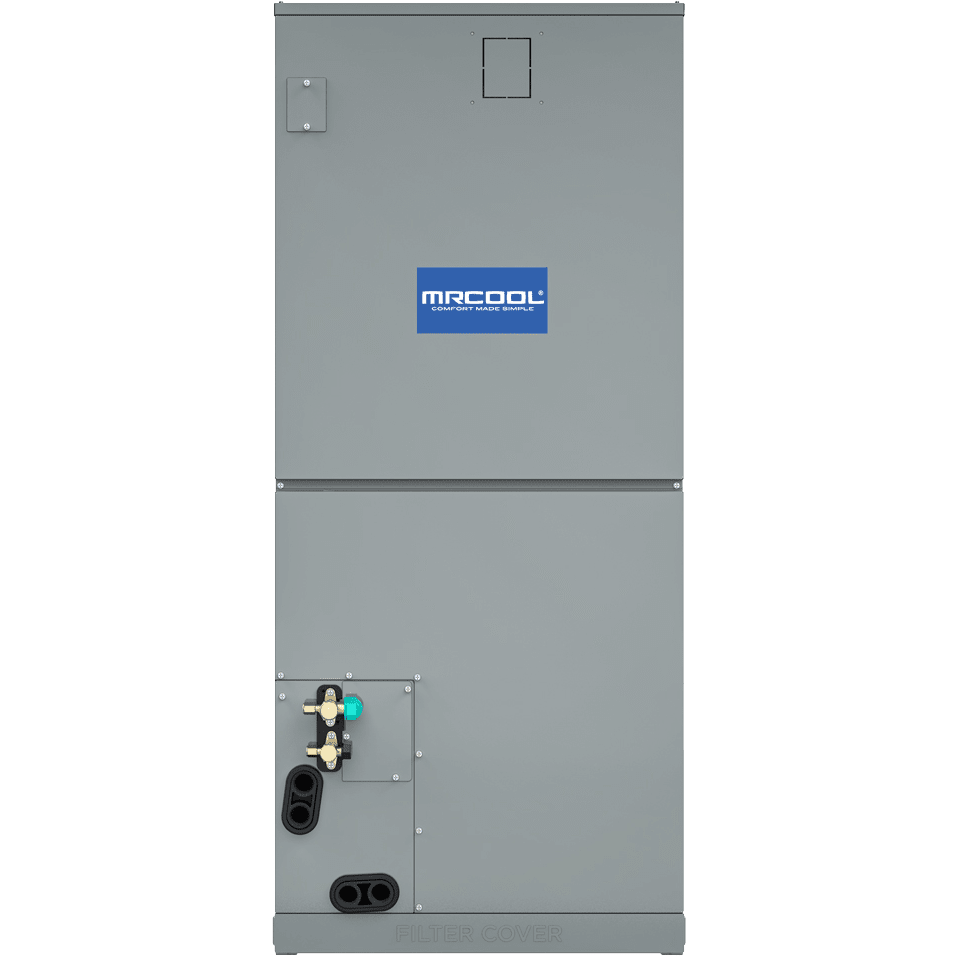

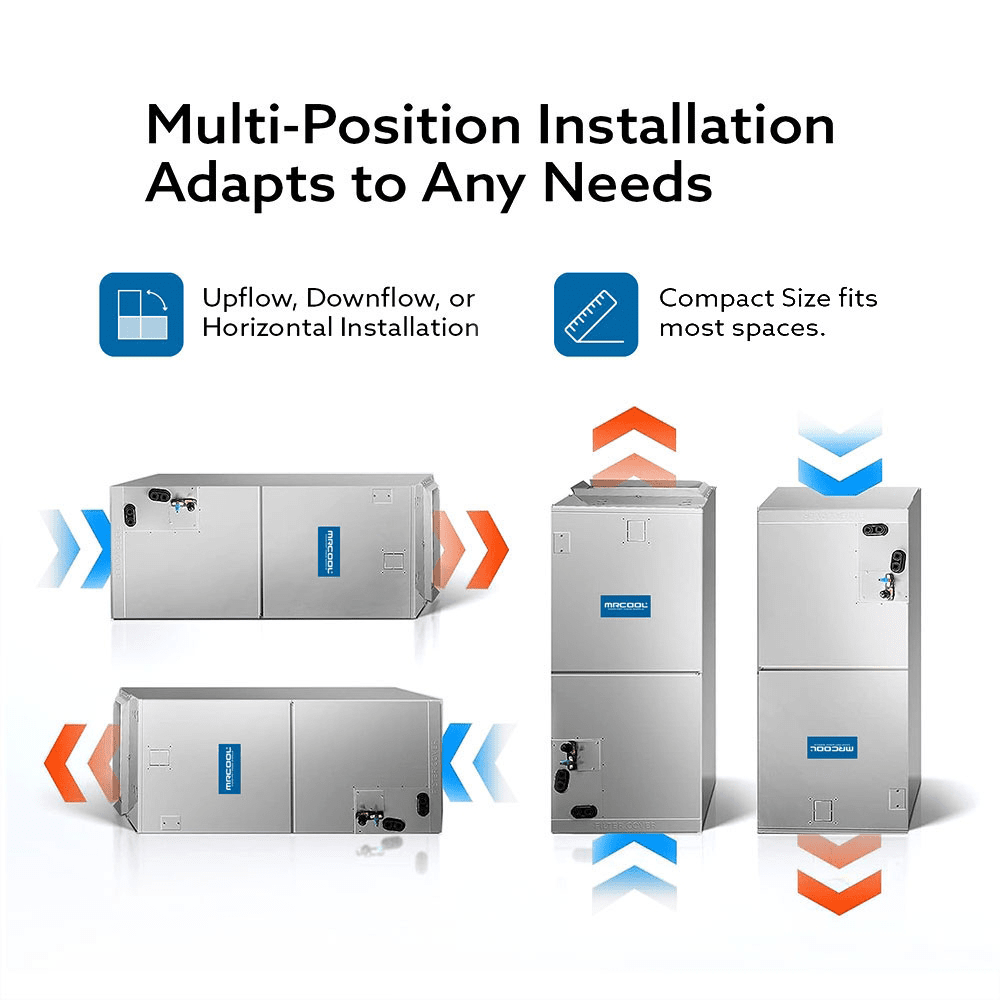

Multi-Position Air Handler: Installs in upflow, downflow, or horizontal orientation, so it can fit your home's layout and existing duct routing.
Long Line Runs: Supports refrigerant line runs up to 164 feet, giving your installer room to place the condenser away from bedrooms and patios.
Self-Diagnostic Mode: Self-diagnostic mode tracks system health and alerts you to potential problems, so you can schedule service before a small fault becomes a breakdown.
ETL and AHRI: Carries ETL and AHRI certifications, so the system's safety and rated performance have been independently verified.
Durable Construction: A painted galvanized steel air handler cabinet and a corrosion-resistant outdoor condenser hold up to the elements, while the modular layout keeps internal parts easy to reach.

Choose Your Auxiliary Heat and Line Set Configuration

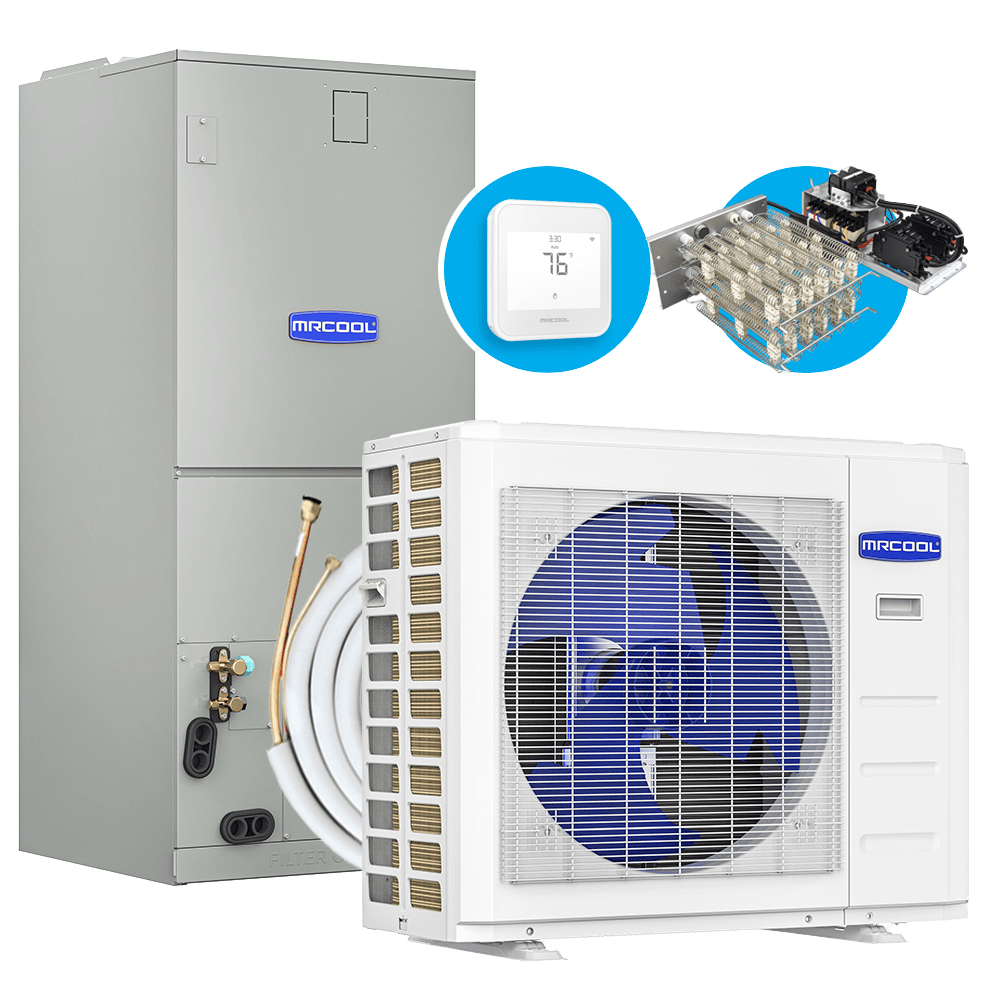

Pick the auxiliary heat level that fits your winters. Select None if the heat pump alone covers your climate or you already have a backup heat source. The 5-kW and 8-kW configurations add supplemental heat for occasional deep cold, while the 10-kW and 15-kW configurations suit homes that lose heat quickly or regularly approach the -22 degree F heating limit.

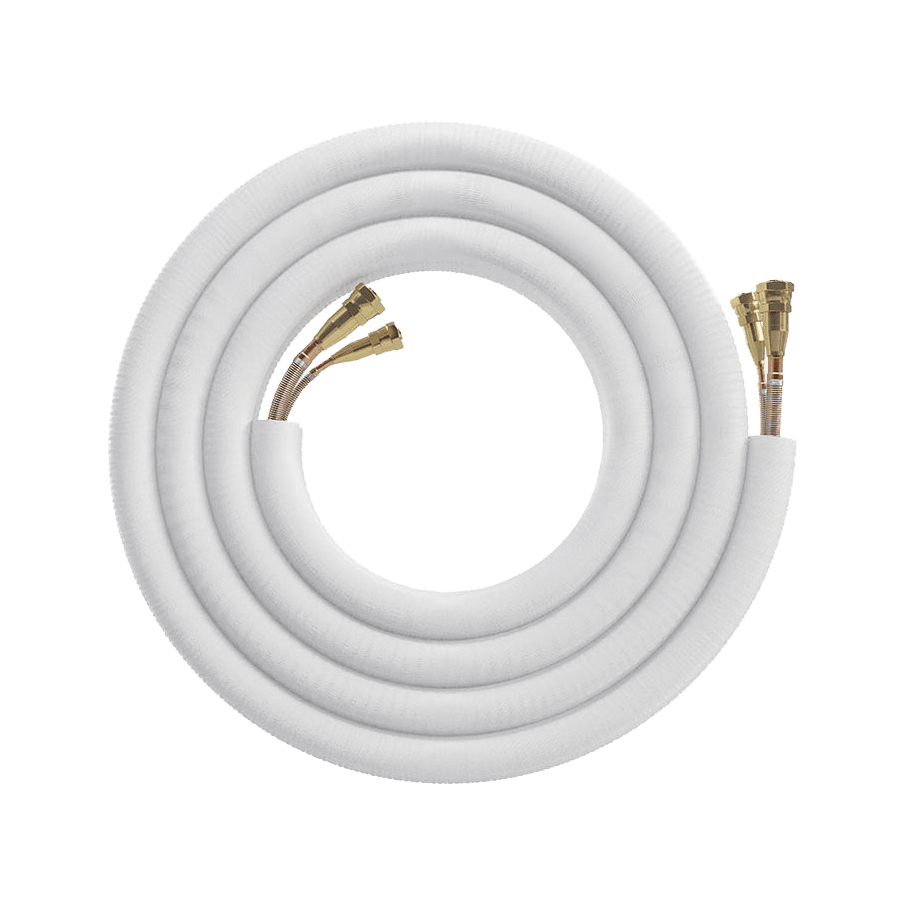

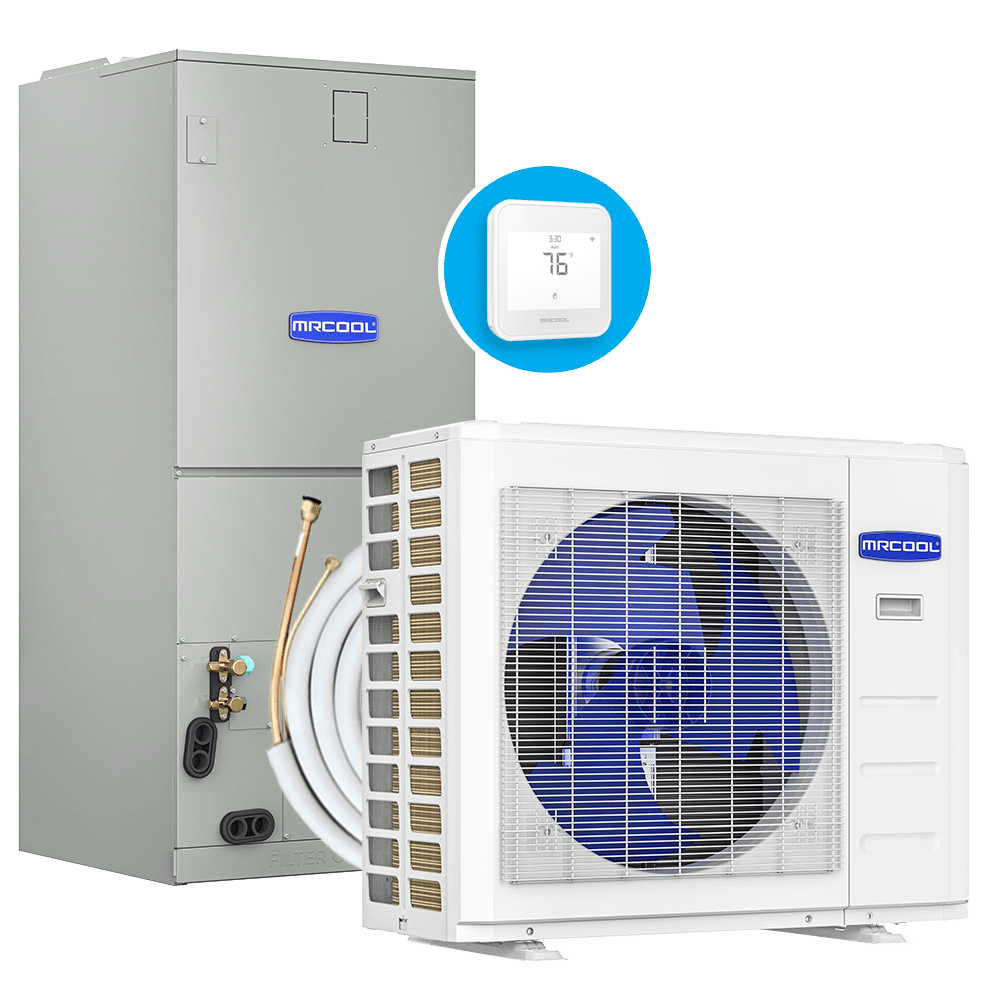

Every line length option, from 15 feet to 50 feet, includes a pre-charged R-454B Quick Connect line set that simplifies the connection between the condenser and air handler. Choose the 15-foot or 25-foot length when the condenser sits close to the air handler, or 35 feet or 50 feet for longer runs to an attic or across a basement. The No Line Set configuration suits installations where you supply your own lines, up to the 164-foot maximum.

Sylvane's Expert Take

If you're replacing both a furnace and a central air conditioner in a home up to 1,400 square feet, the VersaPro line lets you swap them for one ducted heat pump. It suits cold climates, since it heats down to -22 degrees F.

Measure the distance between the condenser and air handler before ordering so you choose the right line length. Add auxiliary heat only if your winters regularly test that low limit. Once installed, the inverter compressor and 8.7 HSPF2 rating keep winter energy costs down.

Specifications

Key Specifications

Energy Efficiency Ratio 2 (EER2)

10.7
Mounting Type

Floor
Number of Speeds

Variable
Seasonal Energy Efficiency Ratio 2 (SEER2)

18.6
Total Cooling Capacity (BTUs)

30000
Total Heating Capacity (BTUs)

31000
Type

Central Split

General

Auxiliary Heat

None / No Line Set: None

None / 15': None

None / 25': None

None / 35': None

None / 50': None

5 kW / 15': 5

5 kW / 25': 5

5 kW / 35': 5

5 kW / 50': 5

8 kW / 15': 8

8 kW / 25': 8

8 kW / 35': 8

8 kW / 50': 8

10 kW / 15': 10

10 kW / 25': 10

10 kW / 35': 10

10 kW / 50': 10

15 kW / 15': 15

15 kW / 25': 15

15 kW / 35': 15

15 kW / 50': 15

5 kW / No Line Set: 5

8 kW / No Line Set: 8

10 kW / No Line Set: 10

15 kW / No Line Set: 15
Certifications

ETL, AHRI
Color

Gray, White
Compressor Type

Inverter
Heat Mode

Yes
Heating Seasonal Performance Factor 2 (HSPF2)

8.7
Installation Type

Professional Installation
Line Length Option

None / No Line Set: No Line Set

None / 15': 15 ft

None / 25': 25 ft

None / 35': 35 ft

None / 50': 50 ft

5 kW / 15': 15 ft

5 kW / 25': 25 ft

5 kW / 35': 35 ft

5 kW / 50': 50 ft

8 kW / 15': 15 ft

8 kW / 25': 25 ft

8 kW / 35': 35 ft

8 kW / 50': 50 ft

10 kW / 15': 15 ft

10 kW / 25': 25 ft

10 kW / 35': 35 ft

10 kW / 50': 50 ft

15 kW / 15': 15 ft

15 kW / 25': 25 ft

15 kW / 35': 35 ft

15 kW / 50': 50 ft

5 kW / No Line Set: No Line Set

8 kW / No Line Set: No Line Set

10 kW / No Line Set: No Line Set

15 kW / No Line Set: No Line Set
Maximum Cubic Feet per Minute (CFM) (CFM)

988.85
Maximum Indoor Noise Level (dB)

46
Maximum Operating Temperature - Cooling (degrees F)

122
Maximum Operating Temperature - Heating (degrees F)

75
Minimum Operating Temperature - Cooling (degrees F)

-22
Minimum Operating Temperature - Heating (degrees F)

-22
Number of Tons

2.5
Refrigerant Type

R-454B
California Residents

⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and reproductive harm. For more information go to www.p65warnings.ca.gov.

Power

Maximum Amperage (Amps)

25.0
Voltage (V)

208-230

Dimensions

Included Line Length (ft.)

None / No Line Set: No Line Set

None / 15': 15

None / 25': 25

None / 35': 35

None / 50': 50

5 kW / 15': 15

5 kW / 25': 25

5 kW / 35': 35

5 kW / 50': 50

8 kW / 15': 15

8 kW / 25': 25

8 kW / 35': 35

8 kW / 50': 50

10 kW / 15': 15

10 kW / 25': 25

10 kW / 35': 35

10 kW / 50': 50

15 kW / 15': 15

15 kW / 25': 25

15 kW / 35': 35

15 kW / 50': 50

5 kW / No Line Set: No Line Set

8 kW / No Line Set: No Line Set

10 kW / No Line Set: No Line Set

15 kW / No Line Set: No Line Set
Indoor Unit Depth (in.)

21.02
Indoor Unit Height (in.)

49.02
Indoor Unit Weight (lbs.)

128.97
Indoor Unit Width (in.)

21.02
Maximum Line Length (ft.)

164
Outdoor Unit Depth (in.)

16.14
Outdoor Unit Height (in.)

31.89
Outdoor Unit Weight (lbs.)

141.76
Outdoor Unit Width (in.)

37.24
