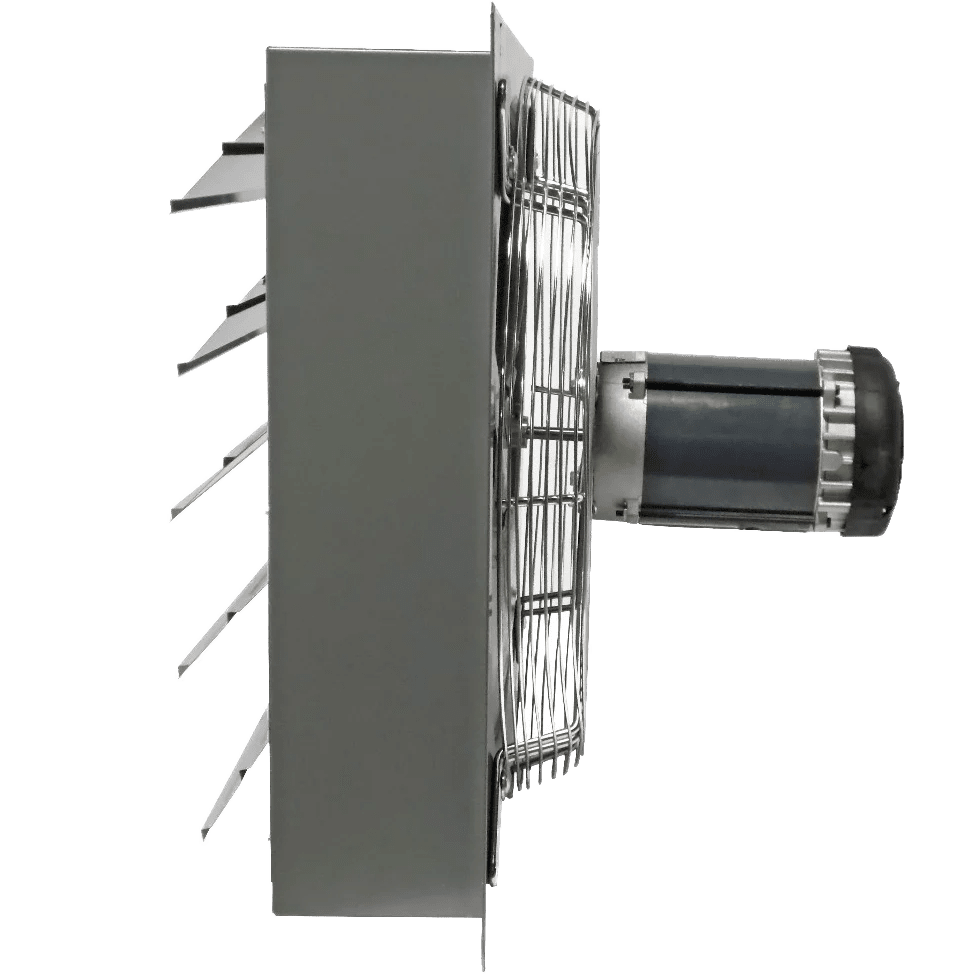

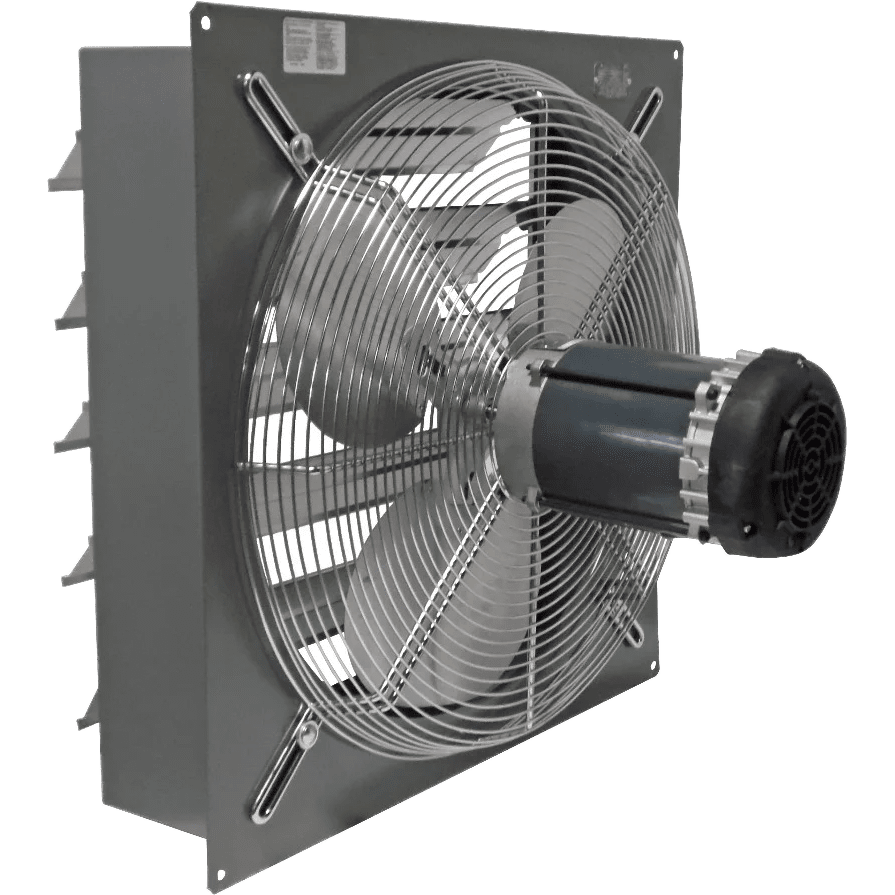

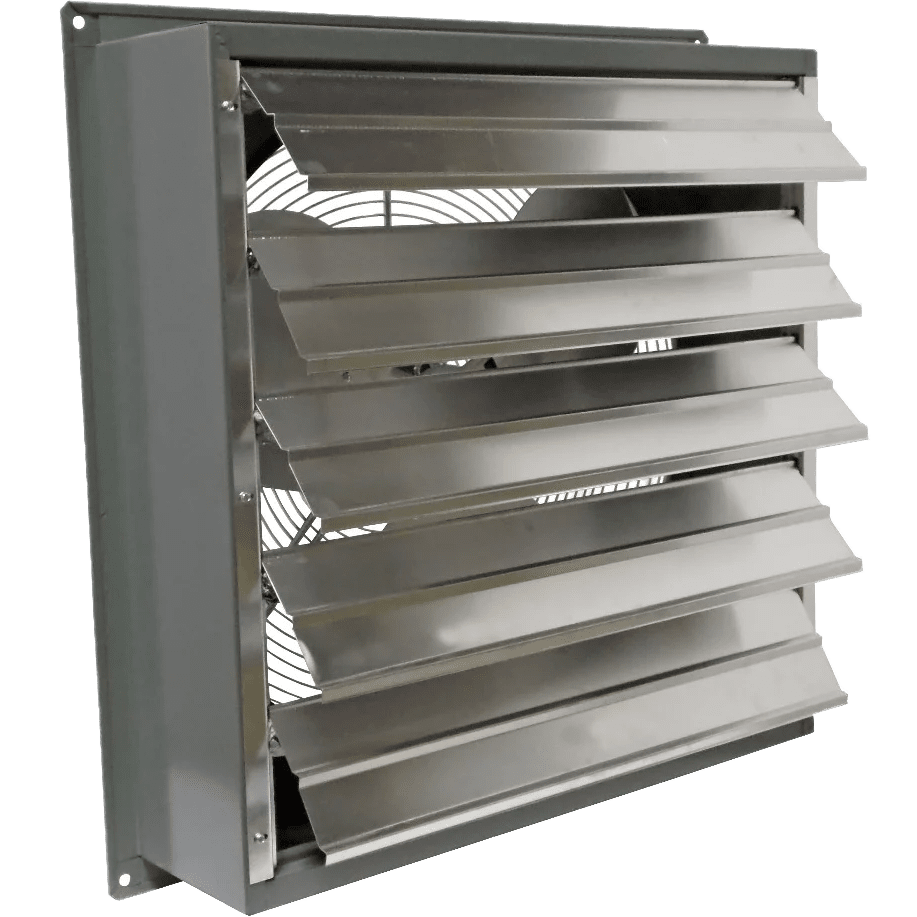

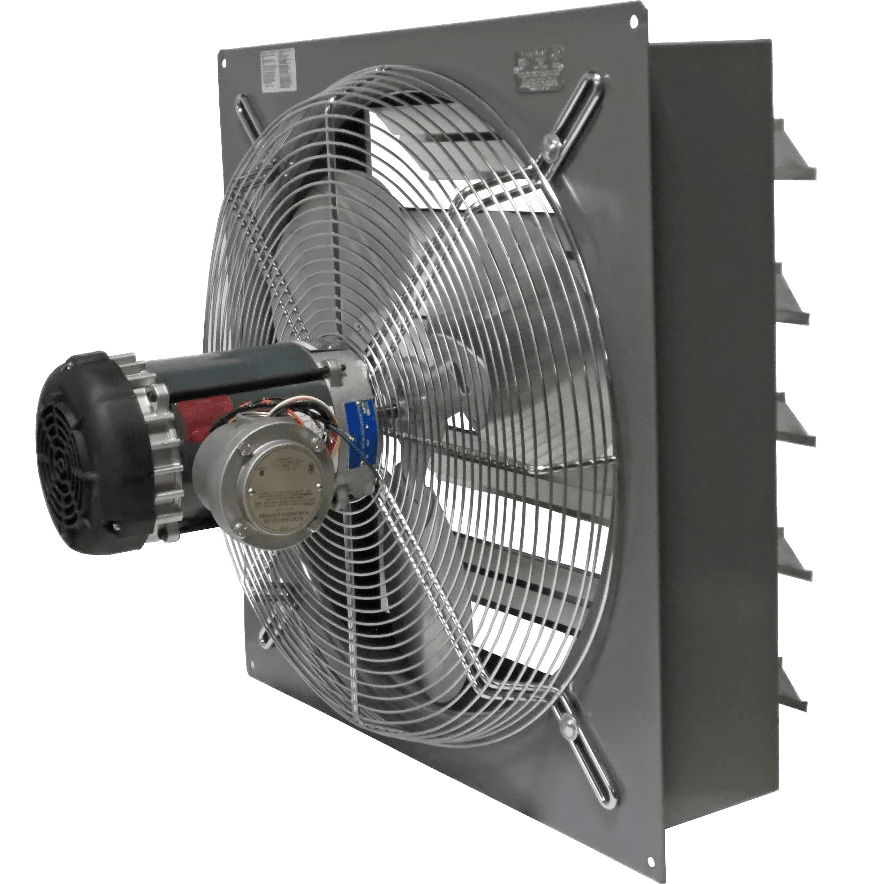

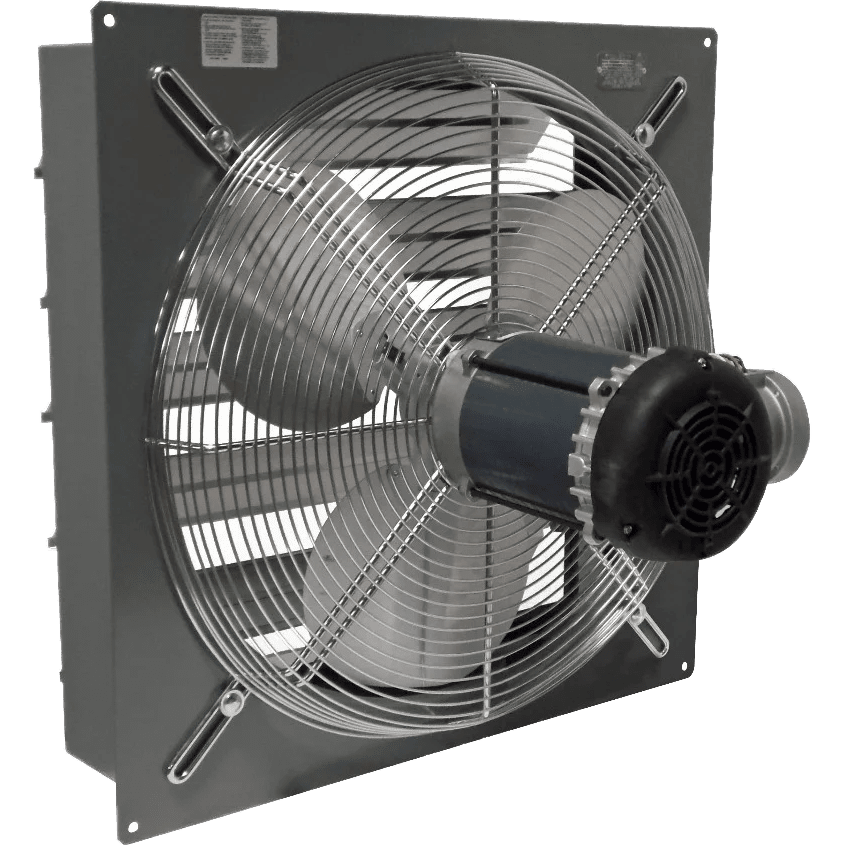

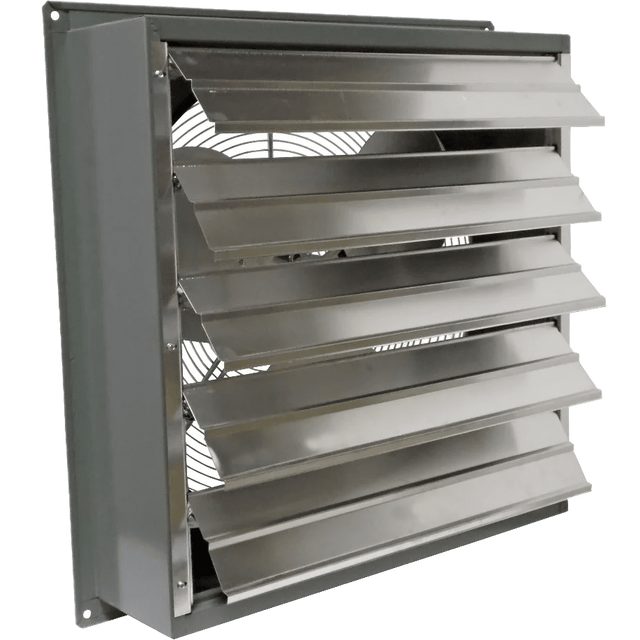

Canarm SD08-XPF 8-In. Explosion Proof Wall Mount Shutter Exhaust Fan

SKU: ca13541  |  Model: SD08-XPF
$84300

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

1-Year Limited Warranty

What's In The Box?
  • Canarm SD08-XPF 8-In. Explosion Proof Wall Mount Shutter Exhaust Fan
  • Owner's Manual

Info & Guides

Description

A safe and reliable ventilation solution for the toughest of industrial applications, the Canarm SD 8-In. Explosion Proof Wall Mount Shutter Exhaust Fan is a must-have. With durable fan blades and rugged steel box housing, it's a reliable choice. This wall-mounted shutter exhaust fan creates an airflow of up to 320 CFM for effective commercial-grade ventilation.

Explosion Proof Motor

The Canarm SD08-XPF is an explosion proof fan that meets and conforms to the following standards:

  • Class I, Group C: Atmospheres containing ethyl ether, ethylene, gases or vapors of equivalent hazard.
  • Class I, Group D: Atmospheres such as acetone, ammonia, benzene, butane, cyclopropane, ethanol, gasoline, hexane, methane, natural gas, naphtha, propane, or gasses or vapors of equivalent hazard.
  • Class II, Group F: Atmospheres containing carbonaceous dust, including carbon black, charcoal, coal, or coke dusts that have more than 8% total entrapped volatiles, or dusts that have been sensitized by other materials so that they present an explosion hazard.
  • Class II, Group G: G Atmospheres containing combustible dusts not included in group E or F, including flour, grain, wood, plastic and chemicals.

Key Features Of The Canarm SD 8-In. Explosion Proof Fan

  • Powerful Airflow: This Canarm shutter exhaust fan is capable of an airflow of up to 320 CFM.
  • Ball-Bearing Motor: Features a totally enclosed, ball bearing motor with thermal overload protection.
  • Durable Fan Blades: Its 8-inch fan blades are constructed of heavy-gauge aluminum.
  • Rugged Design: The steel welded box housing has a durable powder coated finish.
  • OSHA Guards: Equipped with heavy wire chrome plated OSHA guards on intake side of fan.
  • Ships Assembled: This fan ships completely assembled.
  • Framing Dimensions: 11" x 11"

Summary

This single speed, dual voltage explosion proof fan is a must-have for sensitive commercial applications.

Specifications

    Key Specifications

    • Number of Speeds
      1
    • Type
      Shutter Exhaust Fan

    General

    • Application
      Commercial/Industrial
    • Certifications
      cETLus
    • Color
      Gray
    • Controls
      Toggle Switch
    • Housing Material
      Powder-Coated Steel
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      320.0
    • Maximum RPM
      1725
    • California Residents
      ⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

    Power

    • Maximum Amperage (Amps)
      6.6
    • Power Supply
      Hardwired
    • Voltage (V)
      110-120

    Dimensions

    • Ceiling or Wall Cutout Length (in.)
      12.75
    • Ceiling or Wall Cutout Width (in.)
      12.75
    • Depth (in.)
      17.5
    • Height (in.)
      12.0
    • Shutter Fan Size (in.)
      8
    • Weight (lbs.)
      38
    • Width (in.)
      13.25

    Additional Features

    • Additional Features
      Meets OSHA Standards, Explosion Proof

    Warranty

    • Manufacturer's Warranty
      1-Year Limited Warranty
