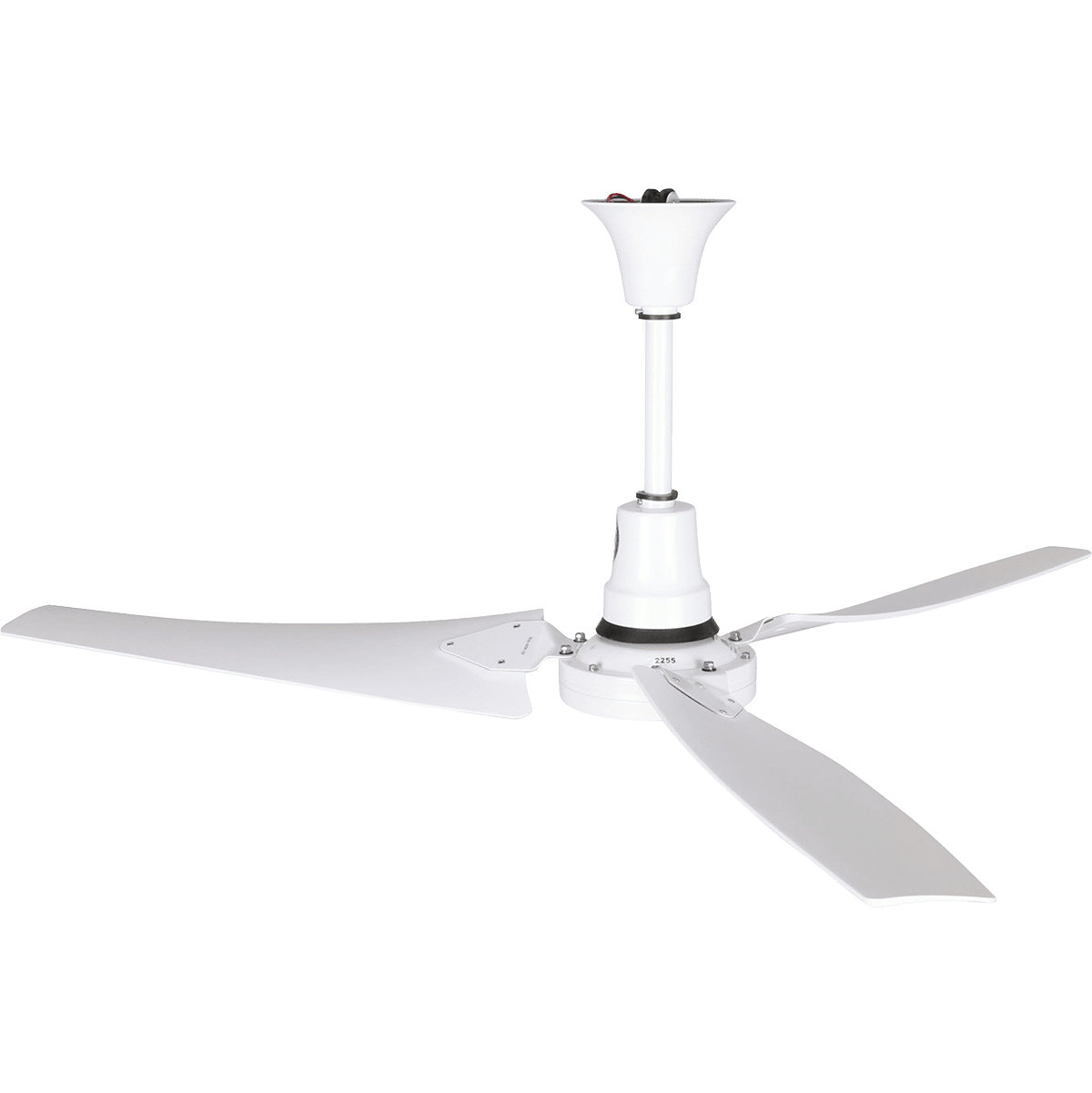

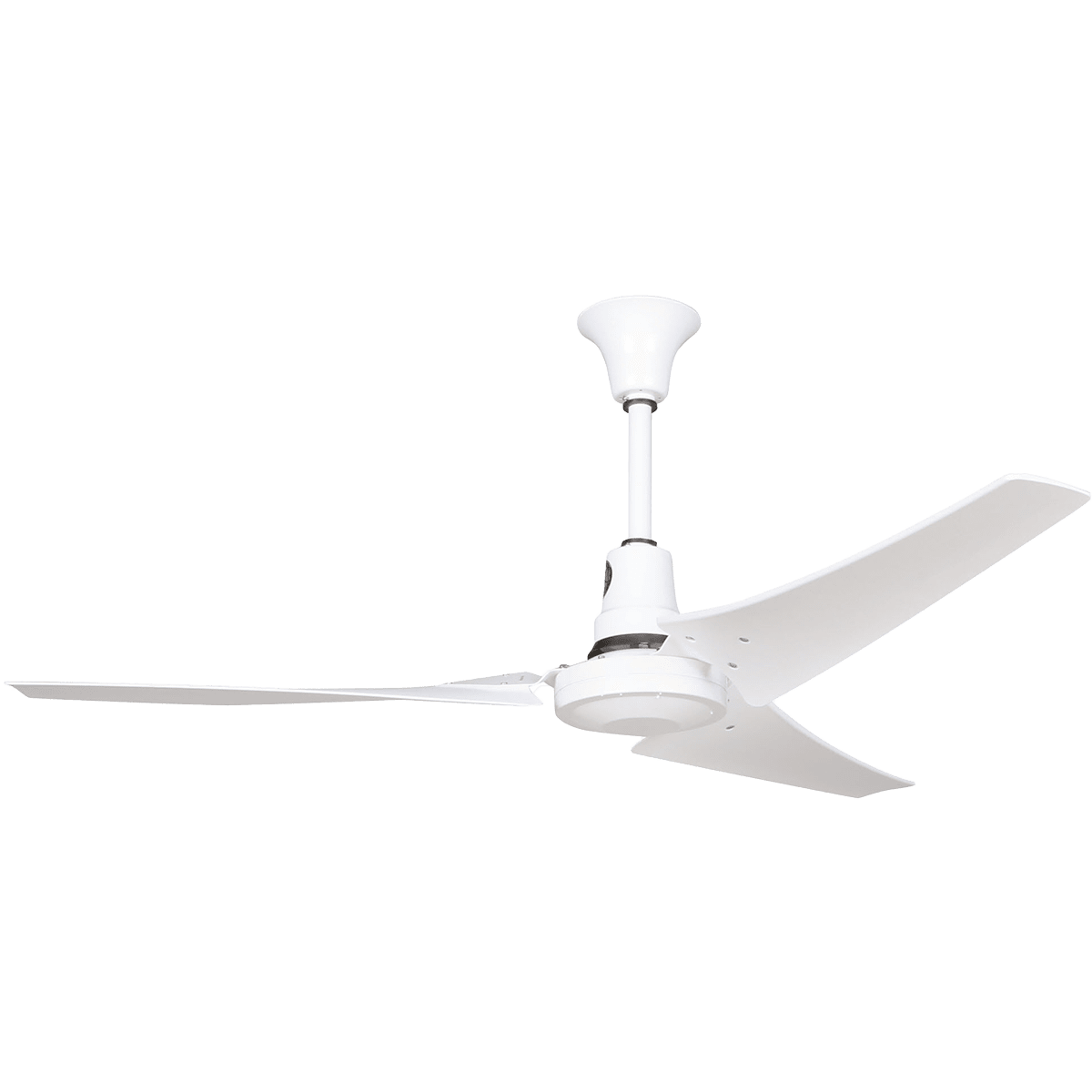

TPI E-CF High Efficiency Industrial Ceiling Fan

SKU: tp13495 | Model: E60CF-D

$300.80

Option

60-in. 56-in.

Product variants

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5- Year Warranty

What's In The Box?

TPI E-CF Industrial Ceiling Fan
Down Rod
J-Hook
Owner's Manual

Info & Guides

Owner's Manual

TPI E-CF High Efficiency Industrial Ceiling Fans are a cost-effective way of moving large volumes of air throughout any building, and even in covered outdoor areas. With both Forward/Reverse options they can be used all year for updraft or downdraft operation.

Select from two fan diameter sizes to best fit the size of the space where air circulation is needed.

Strong, Quiet Operation

These industrial ceiling fans feature a 3-blade moisture-resistant polymer blade assembly made form ABS UV stable injection molding for higher efficiency. Polymer blades operate much more quietly and are less susceptible to balancing issues than steel or aluminum blade assemblies.

The TPI E-CF fans are equipped with a powerful motor capable of swinging the heavier polymer blades for high-volume airflow or heat destratification. They are perfect for workshops, retail stores, patios, warehouses, repair garages, factories, and anywhere powerful, quiet airflow is needed for cooling or removing trapped heat from the ceiling.

Dual Operation

With both forward and reverse operation, the TPI CF ceiling fans have you covered all year round.

During the summer, operate the fan blades in the forward or counter-clockwise rotation to experience down draft airflow for a cooling effect.

In the winter, reverse the fan blade direction, or clockwise, to create an updraft airflow which forces the room air towards the ceiling, pushing the trapped warm air down and outward.

Two Fan Diameters

TPI commercial ceiling fans are available in a 56-inch fan diameter or 60-inch fan diameter to meet the demands of your cooling/destratification needs.

56-inch: Provides maximum airflow of 7,775 CFM
60-inch: Provides maximum airflow of 8,434 CFM

Both ceiling fans come with an 18-inch down-rod and J-Hook connector with a 5/16-in. outside diameter.

Additional Features

Moisture Resistant: Fans can be used in damp locations either indoor or protected outdoor applications where it will not be in direct contact with rain or water.
Hardwire Installation: Must be hardwired and has a 4-wire connection with a 24-inch lead wire.
Separate Speed Control: TPI Solid State 5A variable speed controller is available for purchase separately.
Safety Certifications: ETL CUS Certified

Summary

TPI E-CF Industrial Ceiling Fans are available in 56-inch or 60-inch fan diameters and feature forward/reverse operation for year-round use. Three polymer blades are moisture resistant and designed to operate quietly with better balance that steel or aluminum blades. Variable speed control is required and can be purchased separately.

Key Specifications

Number of Speeds

Variable
Type

Ceiling

General

California Residents

⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer, and chromium, which is known to the state of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
Certifications

cETLus
Color

White
Controls

Electronic
Indoor/Outdoor

Indoor
Maximum Cubic Feet per Minute (CFM) (CFM)

60-in.: 8434.0

56-in.: 7775.0
Recommended Coverage Area (sq. ft.)

600
